Air Compressor Module

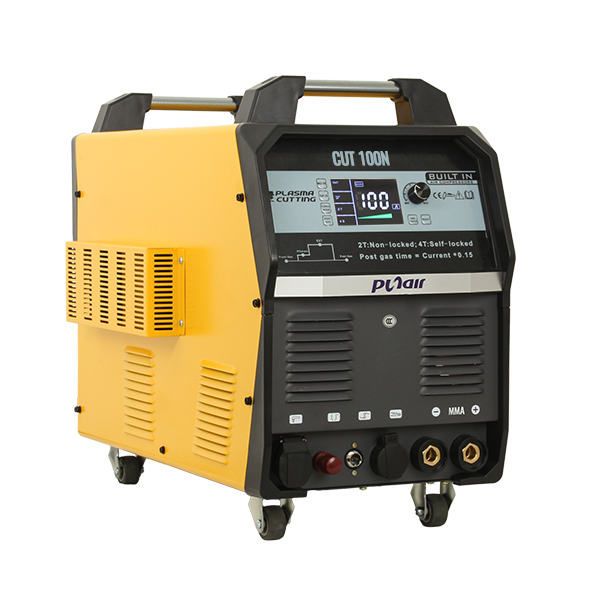

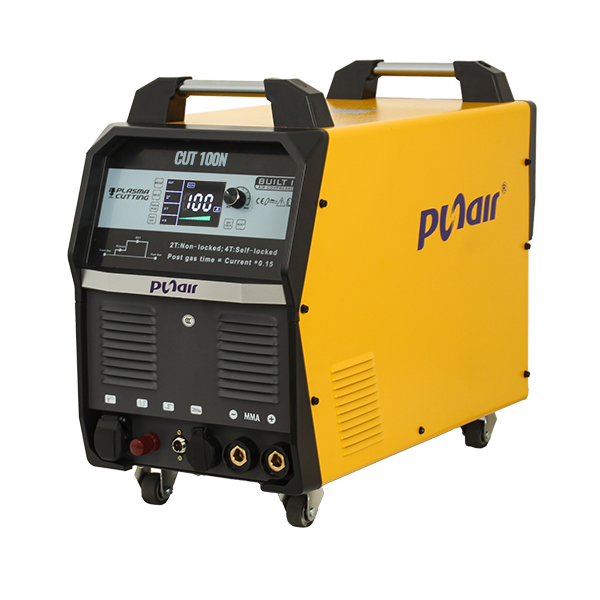

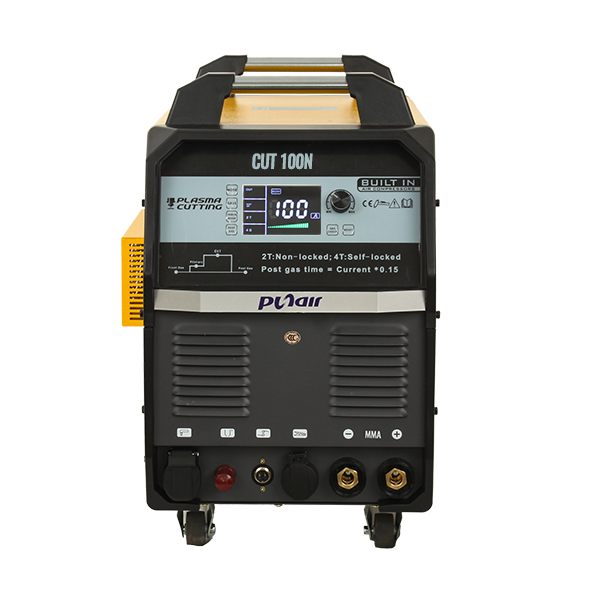

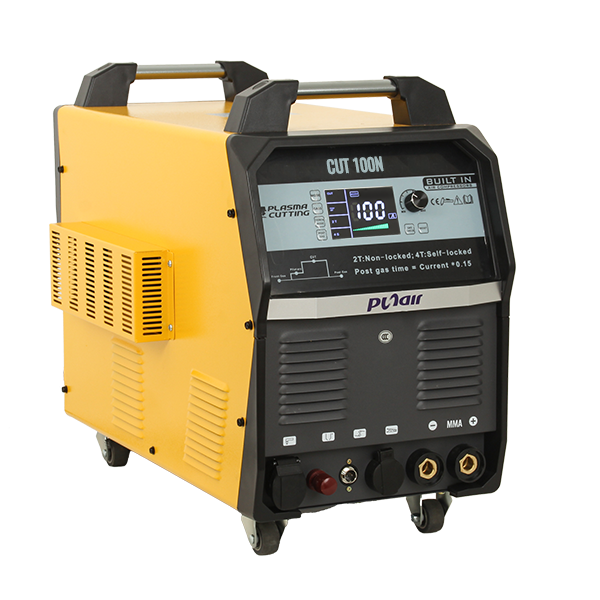

CUT100N

    PUNAIR GIANT CUT MAX-N HF 3-phase offers compact and professional cutting performance, inside air compressor module for easy working.
    · CUT & MMA capabilities
    · Super reliability offered by Dual IGBT modules
    · Inner air compressor + Outside air source
    · Digital panel with Segment LED tech
    · Full Digital control driven by ARM Cortex-M4
    · Adjustable 2T/4T, Post gas control
    · CNC function
    · Max-Plasma technology for consistent arc ignition performance with different torch lengths
    · HF arc ignition and pilot arc
CONTACT USDownload User Maunal
2／4T
Bulit-in air compressor
IGBT inverter tech
MCU
MMA
Overcurrent protection
Overheat protection
Power source
Undervoltage protection
Specifications
Input power AC380V±15%, 3 Phase, 50-60Hz
Rated Input current 24A
Rated Output current 30-100A
Rated Output voltage 120V
Duty cycle 60%
Efficiency 85%
Power factor 0.93
ARC Starting Method Pilot
Insulation class F
Protection class IP21
Dimension 500*425*410mm
Net weight 32.2kg
Packing List
1 pc CUT100N
1 pc CUT torch SG55, 5m
1 pc Electrode Holder 200A, Copper, 10mm² × 3m
1 pc Earth Clamp 300A, Copper, 10mm² × 3m
1 pc Pressure Regulator SAW2000-02
