DC TIG (DC-GTAW)

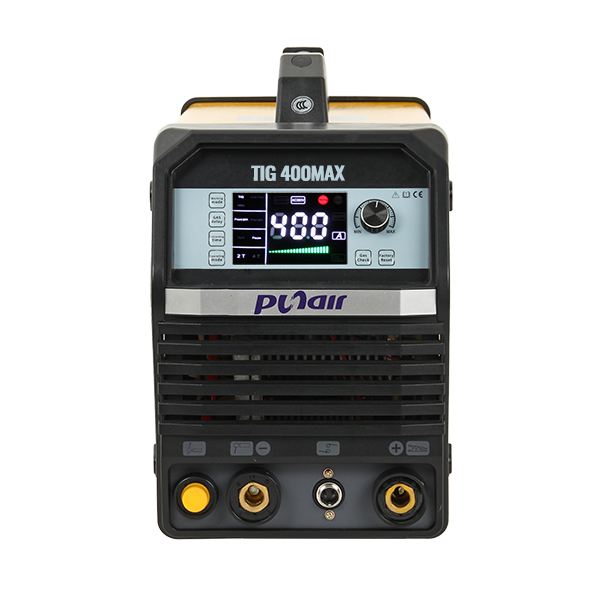

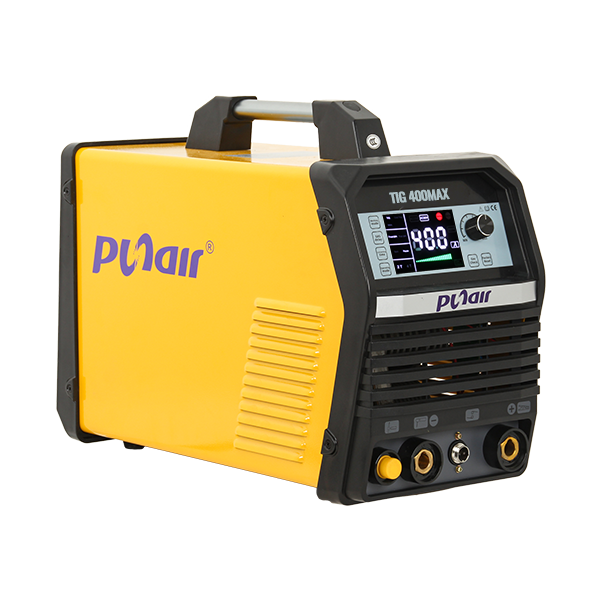

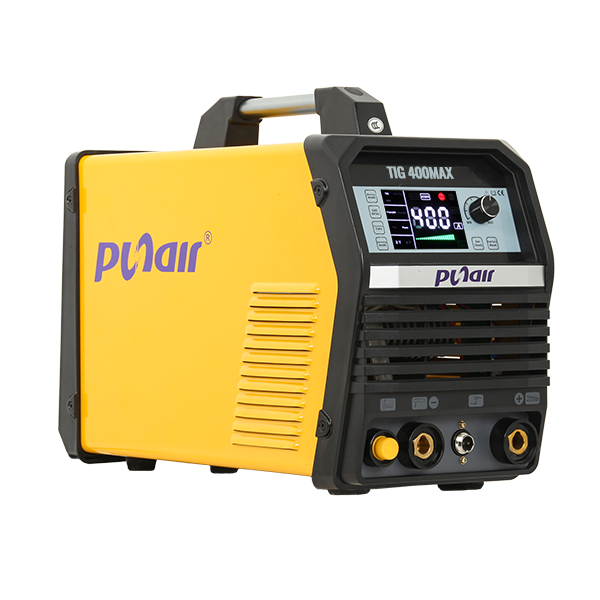

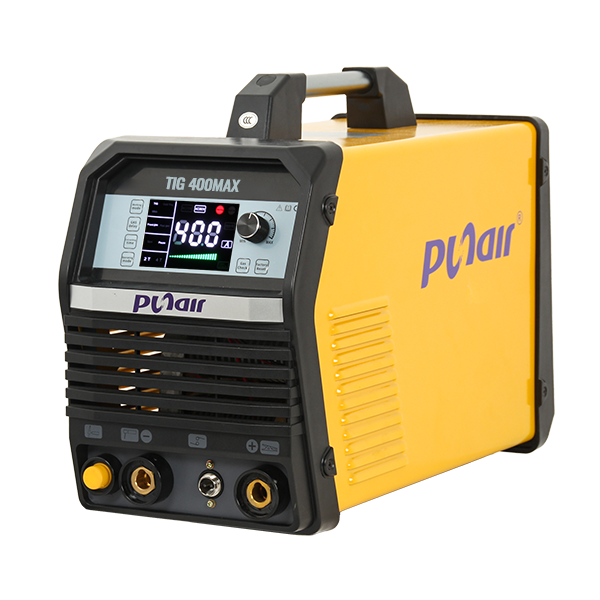

TIG400MAX

    PUNAIR PLUS TIG MAX 3-Phase TIG Welder offers fully digital arc control, enabling achieve highly efficient and precise welding.
    · TIG, MMA capabilities
    · Highly reliable high-frequency arc starter
    · MAX series HD digital panel with Segment LED tech
    · Super reliability offered by modular SiC tubes
    · Continuous and Spot TIG process
    · Reduce hand strain with foot pedal remote control
    · Adjustable pre/post gas, spot/pause function
CONTACT USDownload User Maunal
IGBT inverter tech
MCU
MMA
Multi PCB boards
Overcurrent protection
Overheat protection
Overvoltage protection
Power source
Spot TIG

Specifications
Input power AC380V±15%, 3 Phase, 50-60Hz
Rated Input current 21A
Rated Output current 5-400A
Rated Output voltage 26V
Duty cycle 60%
Efficiency 85%
Power factor 0.93
Insulation class F
Protection class IP21
Dimension 40*215*360mm
Net weight 12.1kg

Packing List
1 pc TIG400MAX
1 pc TIG torch WP18, 10mm² × 4m
1 pc Electrode Holder 500A, Copper, 35mm² × 3m
1 pc Earth clamp 500A, Copper, 35mm² × 3m
1 pc Argon Gas Regulator GH25
Related Products

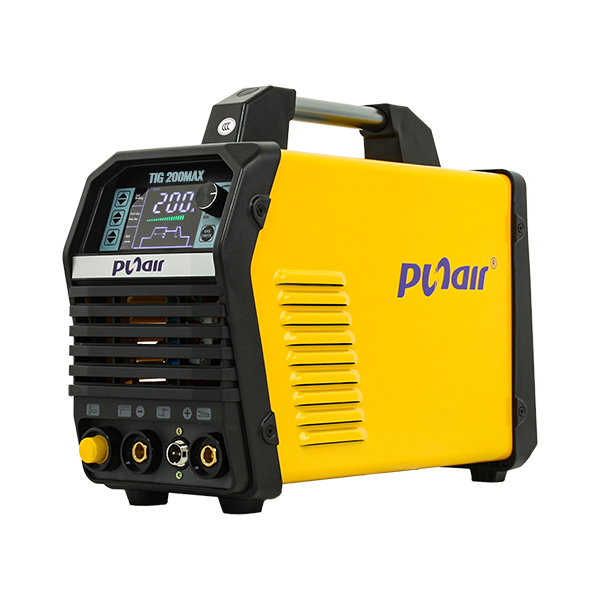

TIG200MAX
    PUNAIR SMART TIG MAX 1-Phase TIG Welder features a cold TIG function, enabling precise and easy welding of thin metals.
    · TIG, Cold TIG and MMA capabilities
    · Leading-edge Cold TIG technology offers an easy operation in thin plate welding.
    · MAX series HD digital panel with Segment LED tech
    · Multi PCBA and Full bridge tech
    · Highly reliable high-frequency arc starter
    · Super reliability offered by modular SiC tubes
    · Reduce hand strain with foot pedal remote control
    · Adjustable pre/post gas, spot/pause function
LEARN MORE

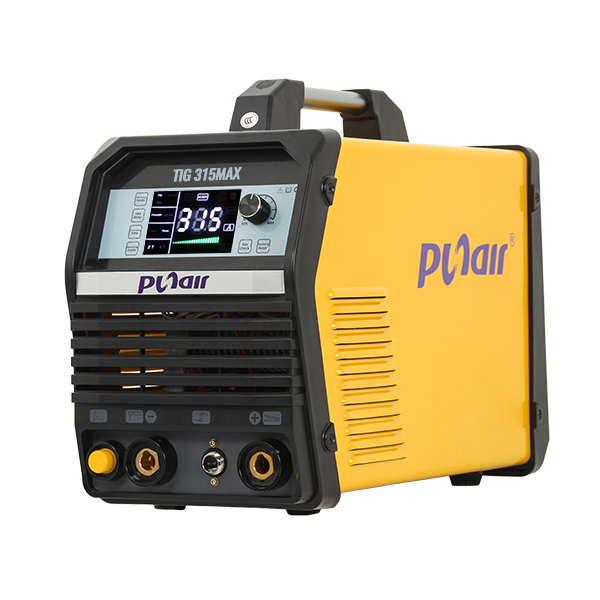

TIG315MAX
