| Input power | AC230V/AC240V±10%, 1 Phase, 50-60Hz |
| Rated Input current | 29.5A |
| Rated Output current | ARC:10-140A |
| LIFT TIG:10-140A | |
| Rated Output voltage | 25.6V |
| Duty cycle | 10% |
| Efficiency | 80% |
| Power factor | 0.73 |
| Insulation class | F |
| Protection class | IP21 |
| Dimension | 253*100*160mm |
| Net weight | 2.75kg |

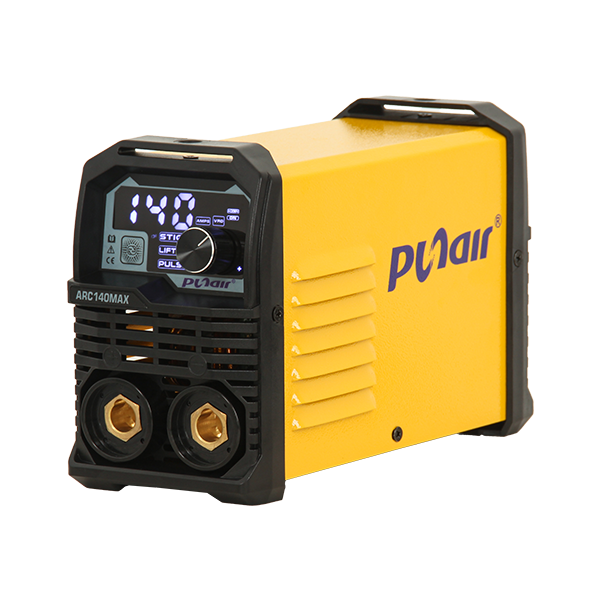

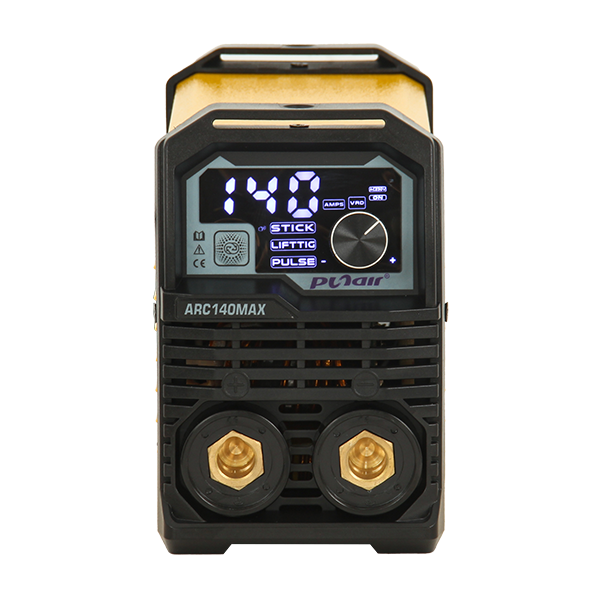

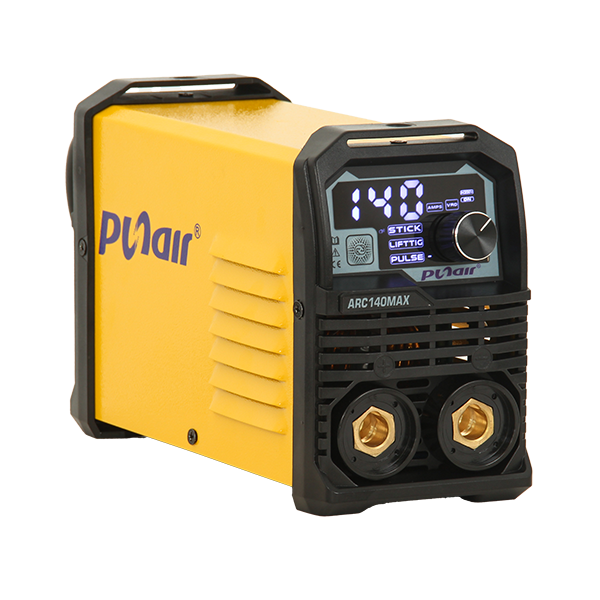

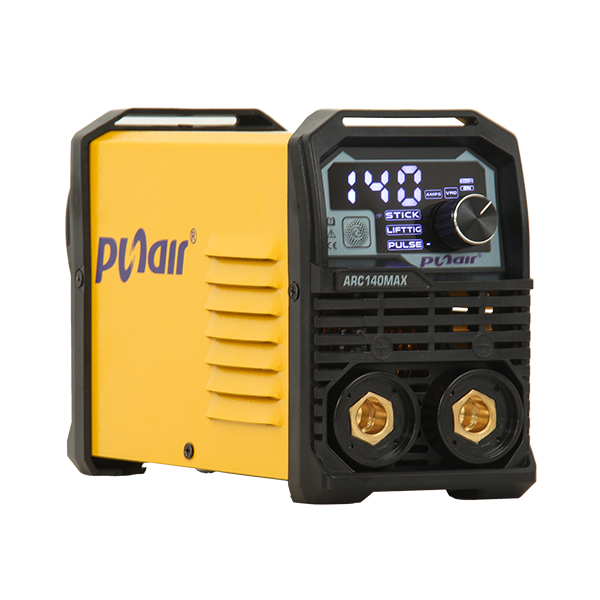

| 1 pc ARC140MAX |
| 1 pc Electrode Holder 200A, Copper, 6mm² × 3m |
| 1 pc Earth clamp 300A, Copper, 6mm² × 3m |
