Multi-process

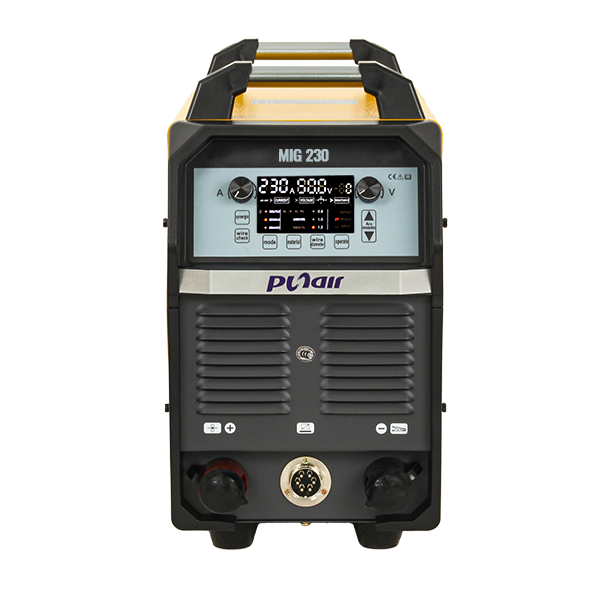

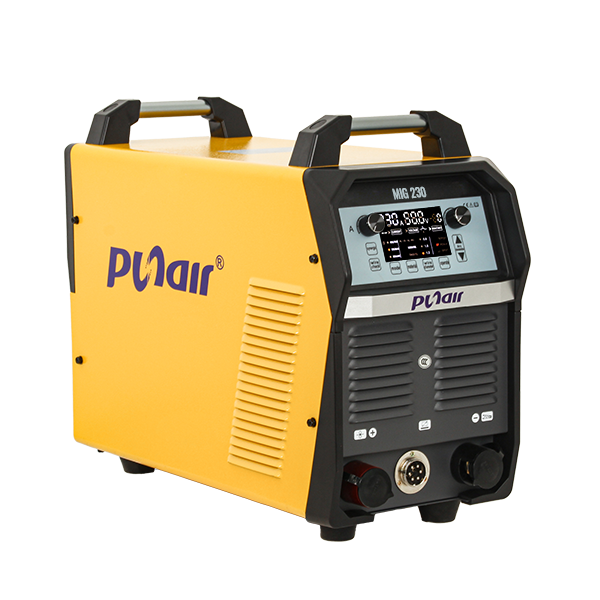

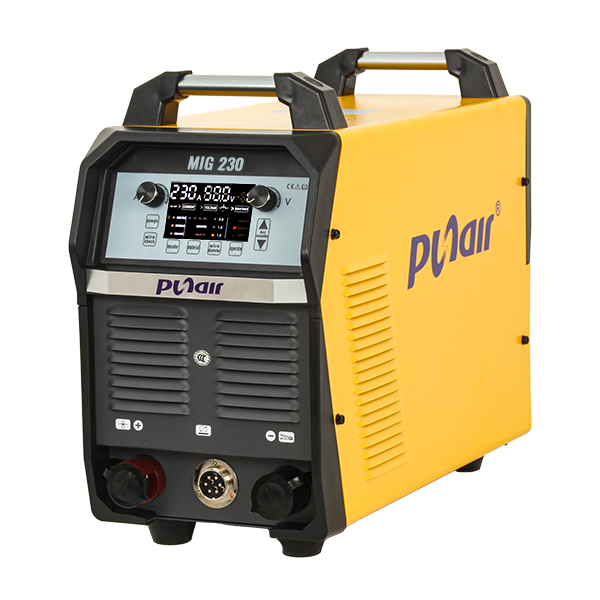

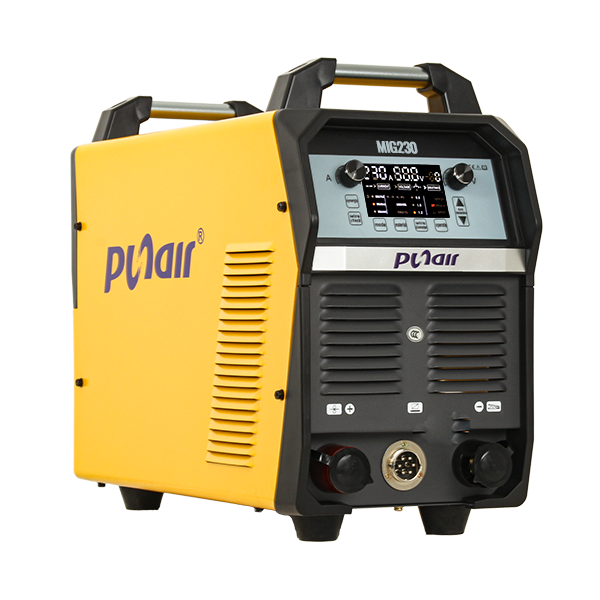

MIG230

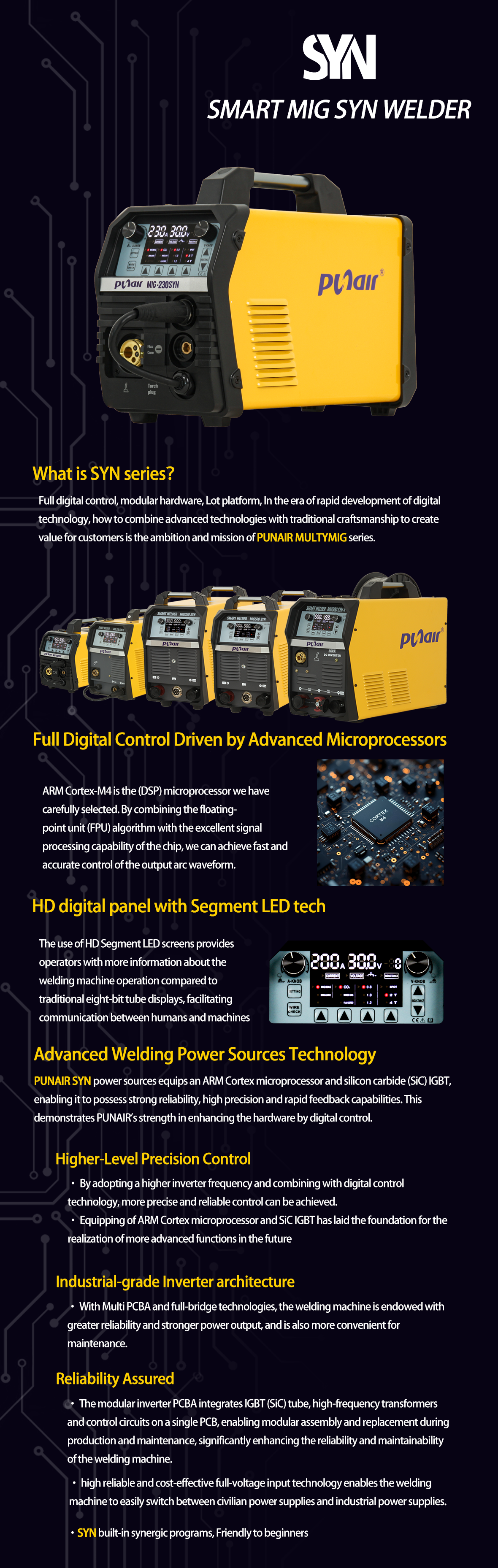

    PUNAIR SMART MIG SYN Single-Phase MIG Welder, A Multi-function and smart welding machine, and more for welding various materials.
    · MIG FLUX MMA Lift-TIG capabilities
    · MAX series HD digital panel with Segment LED tech
    · Full Digital control driven by ARM Cortex-M4
    · Super reliability offered by modular SiC/IGBT tubes
    · Multi PCBA and Full bridge tech
    · Easy and quality welding with Synergic expert database
    · Effortless arc ignition & high consistency with Smart Lift TIG
CONTACT USDownload User Maunal
Auto matching parameters
Bulit-in wire feeder
Lift TIG
MCU
Multi PCB boards
Overcurrent protection
Overheat protection
Power source
Synergetic
Undervoltage protection

Specifications
Input power AC220V±15%, 1 Phase, 50-60Hz
Rated Input current 45A
Rated Output current 30-230A
Rated Output voltage 35V
Duty cycle 40%
Efficiency 85%
Power factor 0.73
Insulation class F
Protection class IP21
Dimension 546*234*417mm
Net weight 19kg

Packing List
1 pc MIG230
1 pc MIG torch 15AK, 14mm² × 4m
1 pc Electrode Holder 200A, Copper, 10mm² × 3m
1 pc Earth Clamp 300A, Copper, 10mm² × 3m
1 pc CO2Regulator 36V
Related Products

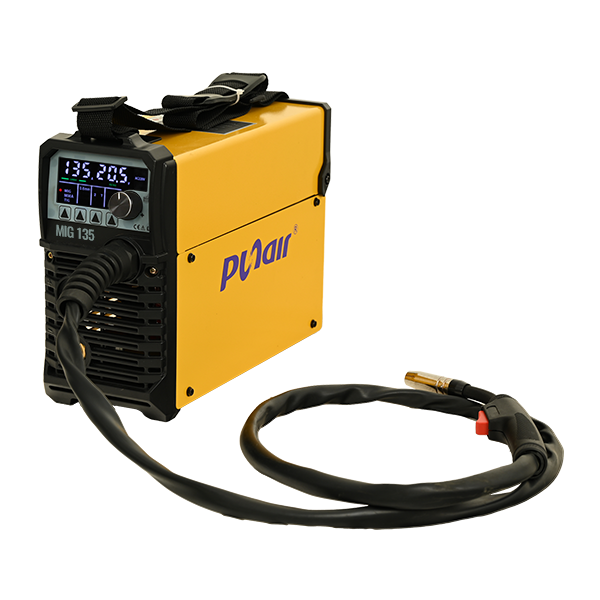

MIG135
