MIG/MAG (GMAW)

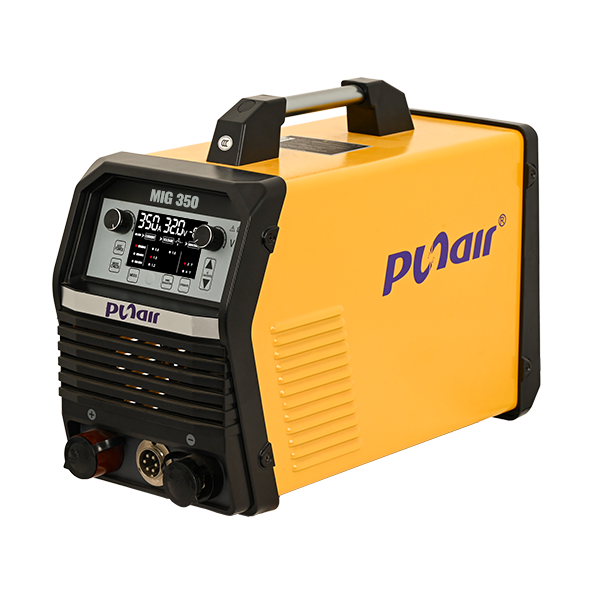

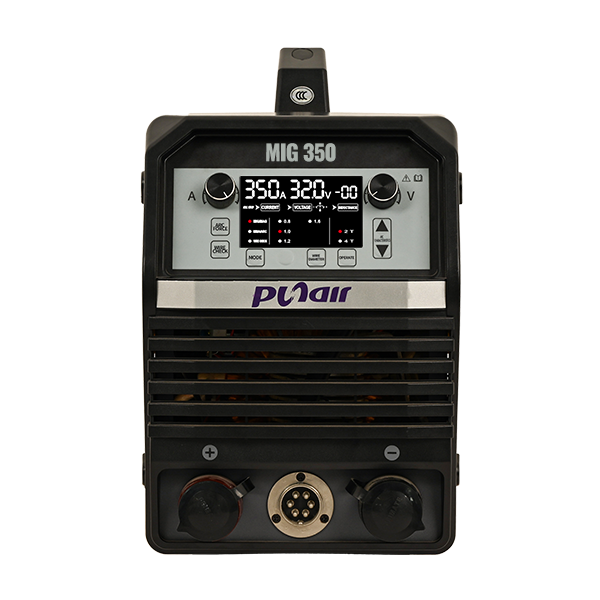

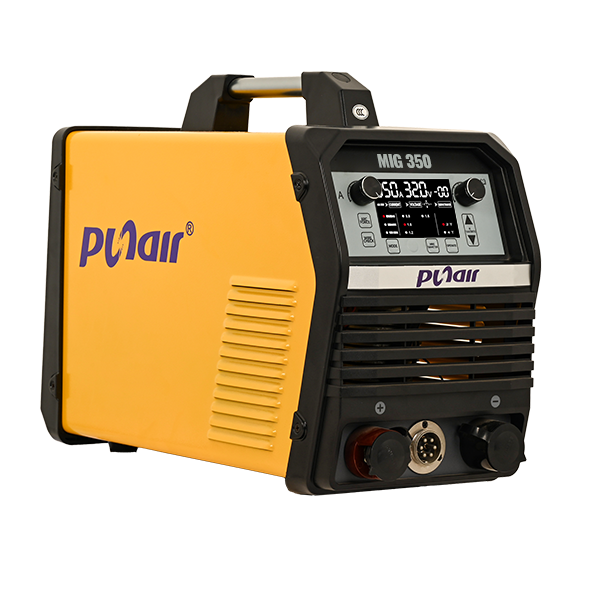

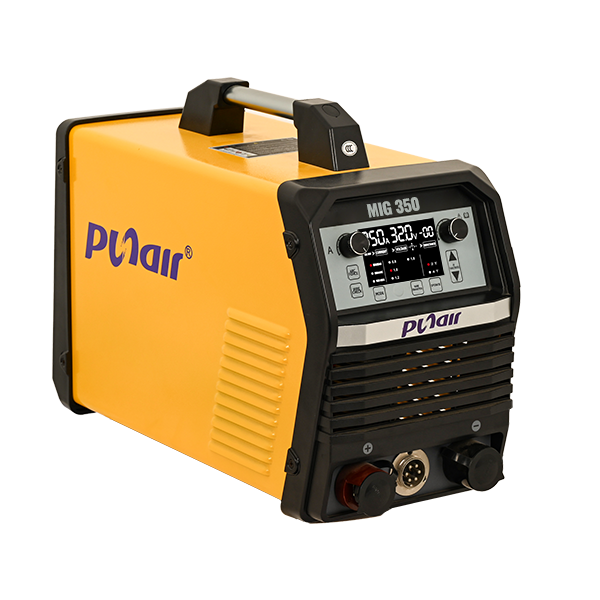

MIG350

    PUNAIR PLUS MIG SEPARATE MIG Welder offers dynamic welding performance and professional operation experience with a separate wire feeder.
    · MIG FLUX MMA capabilities
    · MAX series HD digital panel with Segment LED tech
    · Full Digital control driven by ARM Cortex-M4
    · Super reliability offered by modular SiC/IGBT tubes
    · Multi PCBA and Full bridge tech
    · Adjustable 2T/4T, spot welding and inductance
    · Automatically matching welding parameters
    · Max 30M extension cable assembly
CONTACT USDownload User Maunal
3 380
Auto matching parameters
Bulit-in wire feeder
IGBT inverter tech
MCU
MMA
Multi PCB boards
Overcurrent protection
Overheat protection
Spot welding
Specifications
Input power AC380V±15%, 3 Phase, 50-60Hz
Rated Input current 23A
Rated Output current 50-350A
Rated Output voltage 32V
Duty cycle 60%
Efficiency 85%
Power factor 0.93
Insulation class F
Protection class IP21
Dimension 490*215*360mm
Net weight 11.5kg

Packing List
1 pc MIG350
1 pc MIG torch SY-350A, 30mm² × 5m
1 pc Electrode Holder 500A, Copper, 35mm² × 3m
1 pc Earth Clamp 500A, Copper, 35mm² × 3m
1 pc Wire Feeder TL-350, Single Drive, DC24V, 24m/min
1 pc CO2Regulator 36V
