MIG/MAG (GMAW)

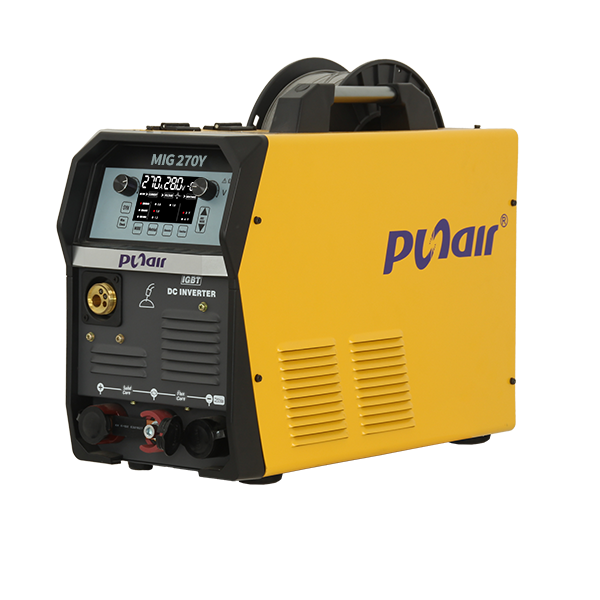

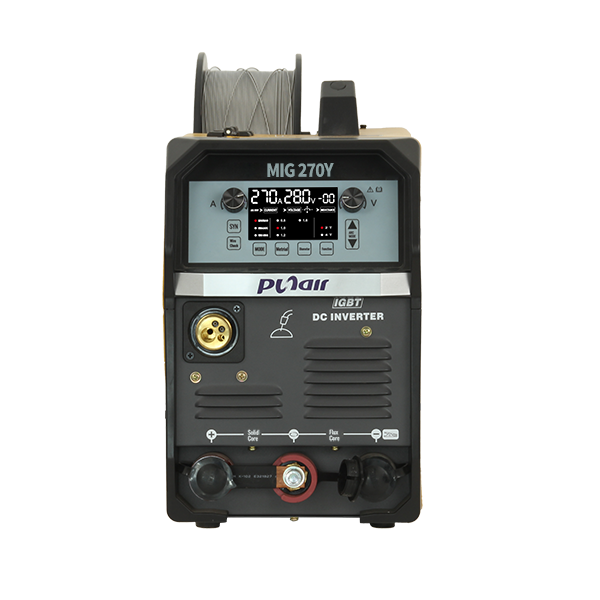

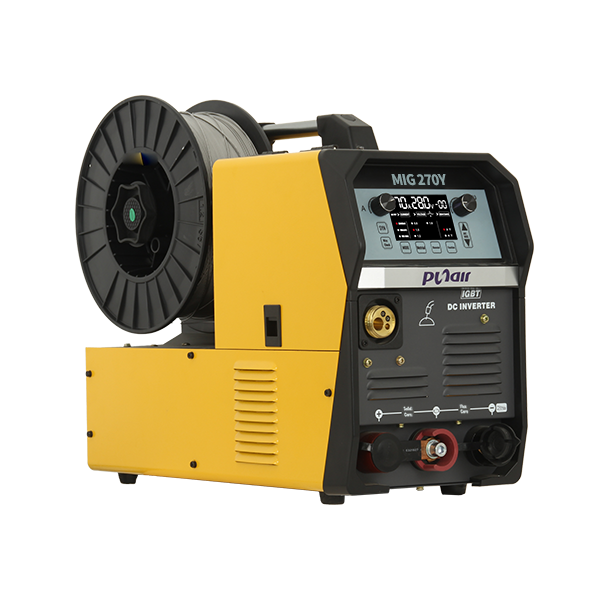

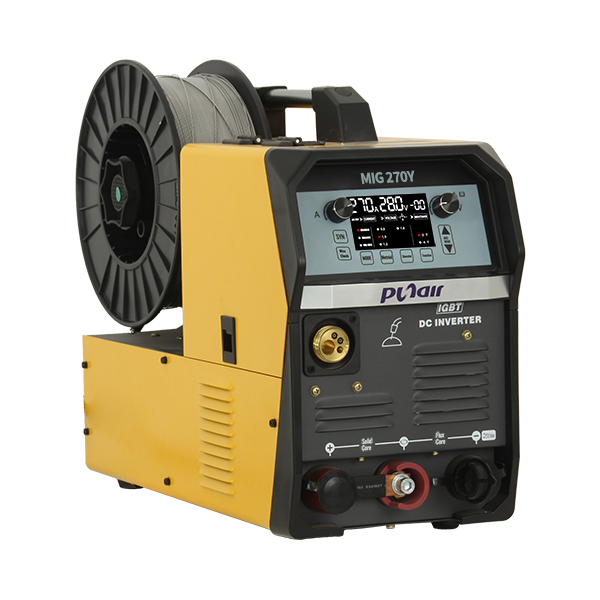

MIG270Y

    PUNAIR PLUS MIG COMPACT MIG Welder offers dynamic welding performance and professional operation experience with a compact style.
    · MIG FLUX MMA Lift-TIG capabilities
    · MAX series HD digital panel with Segment LED tech
    · Full Digital control driven by ARM Cortex-M4
    · Super reliability offered by modular SiC/IGBT tubes
    · Multi PCBA and Full bridge tech
    · Adjustable 2T/4T, spot welding and inductance
    · Automatically matching welding parameters
CONTACT USDownload User Maunal
Auto matching parameters
Bulit-in wire feeder
IGBT inverter tech
MCU
MMA
Multi PCB boards
Overcurrent protection
Overheat protection
Power source
Spot welding
Specifications
Input power AC380V±15%, 3 Phase, 50-60Hz
Rated Input current 18A
Rated Output current 30-270A
Rated Output voltage 25.5V
Duty cycle 40%
Efficiency 80%
Power factor 0.73
Insulation class F
Protection class IP21
Dimension 546*234*417mm
Net weight 17kg

Packing List
1 pc MIG270Y
1 pc MIG torch 15AK, 16mm² × 4m
1 pc Electrode Holder 200A, Copper, 25mm² × 3m
1 pc Earth Clamp 300A, Copper, 25mm² × 3m
1 pc CO2Regulator 36V
